ElementData.h File Reference

Include dependency graph for ElementData.h:

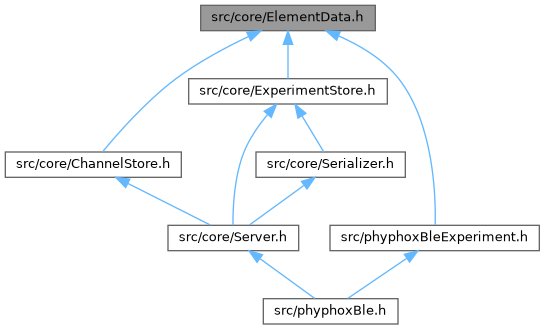

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	phyphox::SubgraphData
	One curve of a graph. Channel 0 is the phone's arrival time, 1…5 the data channels. More...
struct	phyphox::GraphData
struct	phyphox::MapEntry
	A value map entry (text shown while min <= value <= max) or a dropdown option (text + value). More...
struct	phyphox::ValueData
struct	phyphox::InputCommon
	Common part of every element that writes into an input channel (edit, slider, dropdown, toggle, button). More...
struct	phyphox::EditData
struct	phyphox::SliderData
struct	phyphox::DropdownData
struct	phyphox::ToggleData
struct	phyphox::ButtonData
struct	phyphox::InfoData
struct	phyphox::SeparatorData
struct	phyphox::ElementData
	One view element. label and xmlAttribute are common to all; the union holds the rest. More...
struct	phyphox::ViewData
struct	phyphox::ExportDataData
struct	phyphox::ExportSetData
struct	phyphox::SensorData
struct	phyphox::ExperimentData
	The whole experiment. More...

Namespaces
namespace	phyphox

Typedefs
typedef void(*	phyphox::ChangeCallback) (float value)
	Callback types. Plain function pointers (captureless lambdas convert), never std::function.
typedef void(*	phyphox::PressCallback) ()
typedef const char *	phyphox::Color
	A colour is six hex digits, validated by the setter; nullptr means "not set".

Enumerations
enum	phyphox::ElementType : uint8_t {   phyphox::EL_NONE = 0 , phyphox::EL_GRAPH , phyphox::EL_VALUE , phyphox::EL_EDIT ,   phyphox::EL_SLIDER , phyphox::EL_DROPDOWN , phyphox::EL_TOGGLE , phyphox::EL_BUTTON ,   phyphox::EL_INFO , phyphox::EL_SEPARATOR }
enum	phyphox::Style : uint8_t {   phyphox::STYLE_NONE = 0 , phyphox::ST_LINES , phyphox::ST_DOTS , phyphox::ST_VBARS ,   phyphox::ST_HBARS , phyphox::ST_MAP }
enum	phyphox::Layout : uint8_t { phyphox::LAYOUT_NONE = 0 , phyphox::LY_AUTO , phyphox::LY_EXTEND , phyphox::LY_FIXED }
enum	phyphox::Align : uint8_t { phyphox::ALIGN_NONE = 0 , phyphox::AL_LEFT , phyphox::AL_RIGHT , phyphox::AL_CENTER }
enum	phyphox::SensorComponent : uint8_t {   phyphox::COMP_NONE = 0 , phyphox::COMP_X , phyphox::COMP_Y , phyphox::COMP_Z ,   phyphox::COMP_ABS , phyphox::COMP_ACCURACY , phyphox::COMP_T }
