PhyphoxBleExperiment::Element Class Reference

Base of every view element. Holds the plain data the serializer reads. More...

#include <phyphoxBleExperiment.h>

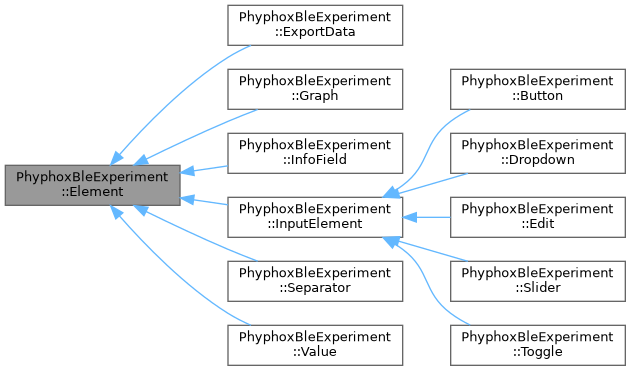

Inheritance diagram for PhyphoxBleExperiment::Element:

Public Member Functions
	Element (const Element &)=delete
Element &	operator= (const Element &)=delete
virtual	~Element ()
virtual void	setLabel (const char *)
void	setXMLAttribute (const char *)
	Raw attribute text appended verbatim to the element's start tag, e.g.
void	setVisibility (int inputChannel)
	Show the element only while the last value in that input channel is > 0 (a toggle's channel, typically).
phyphox::ElementData &	data ()
const phyphox::ElementData &	data () const
virtual bool	isExportData () const

Public Attributes
Element *	next = nullptr
	intrusive list link, set by View::addElement()
View *	owner = nullptr
	the view whose list holds this object (set by addElement)
const Element *	aliasOf = nullptr
	An element added to a second view is represented there by a small heap-allocated alias that points back at the original — the store reads the original's data.

Protected Member Functions
	Element (phyphox::ElementType t)

Protected Attributes
phyphox::ElementData	data_

Detailed Description

Base of every view element. Holds the plain data the serializer reads.

Constructor & Destructor Documentation

Element() [1/2]

PhyphoxBleExperiment::Element::Element ( const Element &  )

delete

~Element()

virtual PhyphoxBleExperiment::Element::~Element ( )

inlinevirtual

Element() [2/2]

PhyphoxBleExperiment::Element::Element ( phyphox::ElementType  t )

inlineexplicitprotected

Member Function Documentation

data() [1/2]

phyphox::ElementData & PhyphoxBleExperiment::Element::data ( )

inline

data() [2/2]

const phyphox::ElementData & PhyphoxBleExperiment::Element::data ( ) const

inline

isExportData()

virtual bool PhyphoxBleExperiment::Element::isExportData ( ) const

inlinevirtual

Reimplemented in PhyphoxBleExperiment::ExportData.

operator=()

Element & PhyphoxBleExperiment::Element::operator= ( const Element &  )

delete

setLabel()

virtual void PhyphoxBleExperiment::Element::setLabel ( const char *  )

virtual

Reimplemented in PhyphoxBleExperiment::ExportData.

setVisibility()

void PhyphoxBleExperiment::Element::setVisibility

(

int

inputChannel

)

Show the element only while the last value in that input channel is > 0 (a toggle's channel, typically).

Format 1.20.

setXMLAttribute()

void PhyphoxBleExperiment::Element::setXMLAttribute

(

const char *

)

Raw attribute text appended verbatim to the element's start tag, e.g.

setXMLAttribute("logY=\"true\""). The escape hatch for anything the API lacks; the library does not validate it.

Member Data Documentation

aliasOf

const Element* PhyphoxBleExperiment::Element::aliasOf = nullptr

An element added to a second view is represented there by a small heap-allocated alias that points back at the original — the store reads the original's data.

(1.x copied the XML at addElement(), so the same Graph in two views was normal.)

data_

phyphox::ElementData PhyphoxBleExperiment::Element::data_

protected

next

Element* PhyphoxBleExperiment::Element::next = nullptr

intrusive list link, set by View::addElement()

owner

View* PhyphoxBleExperiment::Element::owner = nullptr

the view whose list holds this object (set by addElement)

---

The documentation for this class was generated from the following file:

• src/phyphoxBleExperiment.h
