phyphox::Transport Class Reference

#include <Transport.h>

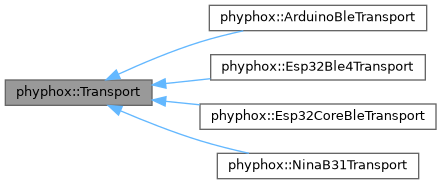

Inheritance diagram for phyphox::Transport:

Public Member Functions
virtual	~Transport ()
virtual bool	begin (const GattLayout &layout, TransportListener &listener)=0
	Create services and characteristics, start advertising the experiment service.
virtual bool	notify (CharId id, const uint8_t *data, uint16_t len)=0
	Send a notification.
virtual bool	asyncNotifyStatus () const
	True if the verdict on notify() arrives later through onNotifyStatus() (ESP32); false if notify()'s return value is the verdict (ArduinoBLE, NINA-B31).
virtual void	setValue (CharId id, const uint8_t *data, uint16_t len)=0
	Set a characteristic's value without notifying (initial values, the legacy config).
virtual bool	connected () const =0
virtual uint16_t	mtuPayload () const =0
	The negotiated MTU payload (ATT_MTU − 3), or PHYPHOX_BLE_DEFAULT_MTU.
virtual void	requestMtu (uint16_t payload)
	Ask the stack for an MTU before connecting (ESP32 only today; others ignore).
virtual void	requestConnectionParameters (uint16_t minInterval, uint16_t maxInterval, uint16_t latency, uint16_t timeout)
	Ask the central for connection parameters (units of 1.25 ms / 10 ms).
virtual void	poll ()=0
	Give the stack CPU time.
virtual bool	drivesTransfer () const
	True if the transport calls listener.pump() from a task of its own, so the core must not also pump from poll() (ESP32: the sketch's loop() may be slow, and a transfer must not run inside a stack callback).
virtual void	restartAdvertising ()=0
virtual const char *	name () const =0
	"ArduinoBLE", "ESP32", "NINA-B31" — for printXML/debug

Constructor & Destructor Documentation

~Transport()

virtual phyphox::Transport::~Transport ( )

inlinevirtual

Member Function Documentation

asyncNotifyStatus()

virtual bool phyphox::Transport::asyncNotifyStatus ( ) const

inlinevirtual

True if the verdict on notify() arrives later through onNotifyStatus() (ESP32); false if notify()'s return value is the verdict (ArduinoBLE, NINA-B31).

begin()

virtual bool phyphox::Transport::begin ( const GattLayout &  layout, TransportListener &  listener  )

pure virtual

Create services and characteristics, start advertising the experiment service.

Implemented in phyphox::ArduinoBleTransport, phyphox::Esp32Ble4Transport, phyphox::Esp32CoreBleTransport, and phyphox::NinaB31Transport.

connected()

virtual bool phyphox::Transport::connected ( ) const

pure virtual

Implemented in phyphox::ArduinoBleTransport, phyphox::Esp32Ble4Transport, phyphox::Esp32CoreBleTransport, and phyphox::NinaB31Transport.

drivesTransfer()

virtual bool phyphox::Transport::drivesTransfer ( ) const

inlinevirtual

True if the transport calls listener.pump() from a task of its own, so the core must not also pump from poll() (ESP32: the sketch's loop() may be slow, and a transfer must not run inside a stack callback).

Reimplemented in phyphox::Esp32Ble4Transport, and phyphox::Esp32CoreBleTransport.

mtuPayload()

virtual uint16_t phyphox::Transport::mtuPayload ( ) const

pure virtual

The negotiated MTU payload (ATT_MTU − 3), or PHYPHOX_BLE_DEFAULT_MTU.

Implemented in phyphox::ArduinoBleTransport, phyphox::Esp32Ble4Transport, phyphox::Esp32CoreBleTransport, and phyphox::NinaB31Transport.

name()

virtual const char * phyphox::Transport::name ( ) const

pure virtual

"ArduinoBLE", "ESP32", "NINA-B31" — for printXML/debug

Implemented in phyphox::ArduinoBleTransport, phyphox::Esp32Ble4Transport, phyphox::Esp32CoreBleTransport, and phyphox::NinaB31Transport.

notify()

virtual bool phyphox::Transport::notify ( CharId  id, const uint8_t *  data, uint16_t  len  )

pure virtual

Send a notification.

Returns false if the stack refused it right now (buffers full): the core will retry. A transport that blocks until accepted (ArduinoBLE) returns true. A transport that only learns the verdict later (ESP32) returns true and reports via onNotifyStatus().

Implemented in phyphox::ArduinoBleTransport, phyphox::Esp32Ble4Transport, phyphox::Esp32CoreBleTransport, and phyphox::NinaB31Transport.

poll()

virtual void phyphox::Transport::poll ( )

pure virtual

Give the stack CPU time.

Called from PhyphoxBLE::poll(); a no-op where the stack runs on its own (ESP32).

Implemented in phyphox::ArduinoBleTransport, phyphox::Esp32Ble4Transport, phyphox::Esp32CoreBleTransport, and phyphox::NinaB31Transport.

requestConnectionParameters()

virtual void phyphox::Transport::requestConnectionParameters ( uint16_t  minInterval, uint16_t  maxInterval, uint16_t  latency, uint16_t  timeout  )

inlinevirtual

Ask the central for connection parameters (units of 1.25 ms / 10 ms).

Transports that cannot ignore it. The core only passes Apple-compliant values (min >= 15 ms, max >= min + 15 ms).

Reimplemented in phyphox::ArduinoBleTransport, phyphox::Esp32Ble4Transport, and phyphox::Esp32CoreBleTransport.

requestMtu()

virtual void phyphox::Transport::requestMtu ( uint16_t  payload )

inlinevirtual

Ask the stack for an MTU before connecting (ESP32 only today; others ignore).

Reimplemented in phyphox::ArduinoBleTransport, phyphox::Esp32Ble4Transport, and phyphox::Esp32CoreBleTransport.

restartAdvertising()

virtual void phyphox::Transport::restartAdvertising ( )

pure virtual

Implemented in phyphox::ArduinoBleTransport, phyphox::Esp32Ble4Transport, phyphox::Esp32CoreBleTransport, and phyphox::NinaB31Transport.

setValue()

virtual void phyphox::Transport::setValue ( CharId  id, const uint8_t *  data, uint16_t  len  )

pure virtual

Set a characteristic's value without notifying (initial values, the legacy config).

Implemented in phyphox::ArduinoBleTransport, phyphox::Esp32Ble4Transport, phyphox::Esp32CoreBleTransport, and phyphox::NinaB31Transport.

---

The documentation for this class was generated from the following file:

• src/transport/Transport.h
