Common API of the elements that send a value to the board. More...

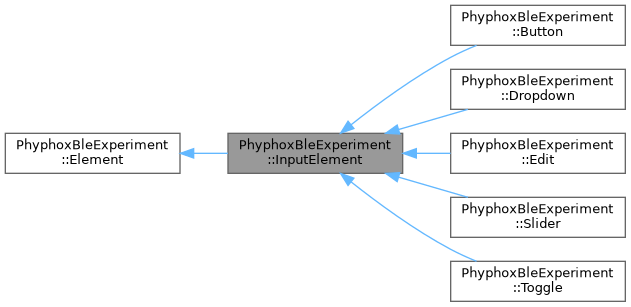

Inheritance diagram for PhyphoxBleExperiment::InputElement:

[legend]

Public Member Functions
void	setChannel (int)
	input channel 1…PHYPHOX_BLE_INPUT_CHANNELS

void	setDefault (float)

void	onChange (phyphox::ChangeCallback)
	Called on the board whenever the phone delivers a new value for this channel.

Public Member Functions inherited from PhyphoxBleExperiment::Element
	Element (const Element &)=delete

Element &	operator= (const Element &)=delete

virtual	~Element ()

virtual void	setLabel (const char *)

void	setXMLAttribute (const char *)
	Raw attribute text appended verbatim to the element's start tag, e.g.

void	setVisibility (int inputChannel)
	Show the element only while the last value in that input channel is > 0 (a toggle's channel, typically).

phyphox::ElementData &	data ()

const phyphox::ElementData &	data () const

virtual bool	isExportData () const

Protected Member Functions
	InputElement (phyphox::ElementType t)

Protected Member Functions inherited from PhyphoxBleExperiment::Element
	Element (phyphox::ElementType t)

Additional Inherited Members
Public Attributes inherited from PhyphoxBleExperiment::Element
Element *	next = nullptr
	intrusive list link, set by View::addElement()

View *	owner = nullptr
	the view whose list holds this object (set by addElement)

const Element *	aliasOf = nullptr
	An element added to a second view is represented there by a small heap-allocated alias that points back at the original — the store reads the original's data.

Protected Attributes inherited from PhyphoxBleExperiment::Element
phyphox::ElementData	data_

Detailed Description

Common API of the elements that send a value to the board.

Constructor & Destructor Documentation

PhyphoxBleExperiment::InputElement::InputElement ( phyphox::ElementType t )

inlineexplicitprotected

void PhyphoxBleExperiment::InputElement::onChange ( phyphox::ChangeCallback )

Called on the board whenever the phone delivers a new value for this channel.

void PhyphoxBleExperiment::InputElement::setChannel ( int )

input channel 1…PHYPHOX_BLE_INPUT_CHANNELS

void PhyphoxBleExperiment::InputElement::setDefault ( float )

The documentation for this class was generated from the following file:
